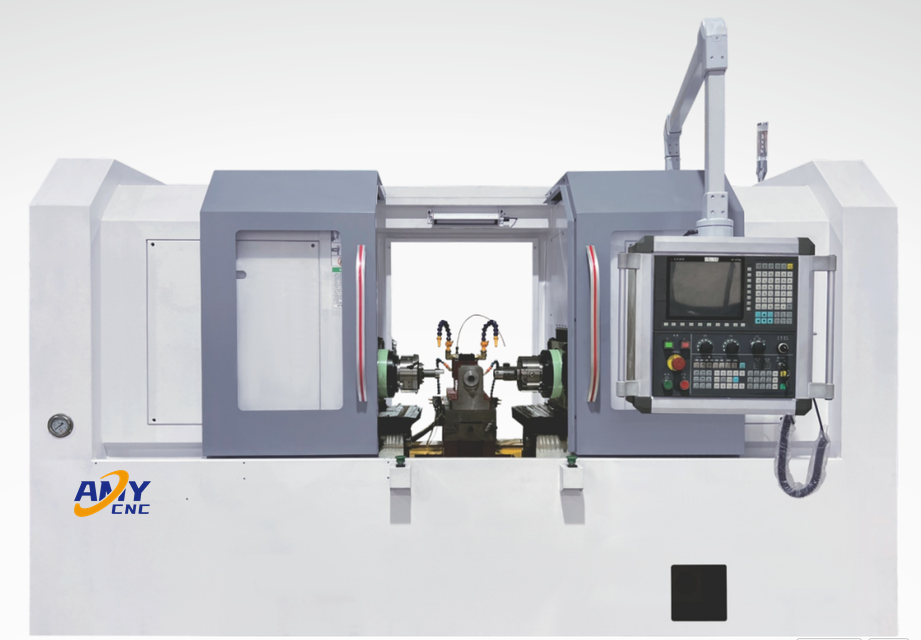

The gate valve sealing face machining machine covers gate valve body and gate-plate sealing-face work. The mapped technical catalog shows one 1/2 inch to 2 inch configuration with two spindles, hydraulic fixturing and cooling options; final family range and cutter-head structure require quotation confirmation.
What is this machine used for?
The gate valve sealing face machining machine covers gate valve body and gate-plate sealing-face work. The mapped technical catalog shows one 1/2 inch to 2 inch configuration with two spindles, hydraulic fixturing and cooling options; final family range and cutter-head structure require quotation confirmation.
Key machine features
- The shown supplier configuration covers 1/2 inch to 2 inch gate valve body and gate-plate sealing-face processing.
- Two spindle positions are listed in the catalog table.
- The shown supplier configuration lists 12-30 seconds per piece as reference data, not guaranteed project output.
- Servo-driven spindle and hydraulic fixturing are listed in the source data.
- Use only as catalog-derived planning data until a final model name is confirmed.
Catalog-derived specifications
Use this specification table to compare the machine family. Confirm the selected model, drawing, material, fixtures, voltage and process requirements before ordering.
| Specification | Catalog-derived value |
|---|---|
| Machining capability | Shown 1/2 inch to 2 inch configuration for gate valve body and gate-plate sealing-face machining |
| Spindle quantity | 2 |
| Machining material | Bronze, brass, stainless steel |
| Machining capacity | 12-30 seconds per piece |
| Spindle speed | 300-1500 rpm |
| Z-axis travel | >=150 mm |
| X-axis travel | >=15 mm |
| Control mode | Control system listed as Taiwan Yitu |
| Fixture type | Hydraulic drive |
| X-axis motor power | 0.85 kW x 2 set |
| Z-axis motor power | 0.85 kW x 2 set |
| Power supply | AC380V / 50Hz |
| Total power | 11 kW |
| Machine size | 2.6 m x 1.52 m x 1.75 m |
| Machine weight | 3500 kg |
Source and specification boundary
Source basis: Technical catalog reference reviewed by AMY CNC on 2026-07-14. Catalog values are planning references and must be confirmed against the workpiece drawing and final quotation.
The mapped technical catalog page describes gate valve bodies and gate plates. The 1/2 inch to 2 inch and 12-30 seconds-per-piece values describe a shown configuration, not guaranteed family limits or output.
RFQ data buyers should prepare
- Workpiece drawings or photos with target dimensions.
- Valve type, valve size, material, and machining sequence.
- Required tolerance, surface finish, cycle target, and batch quantity.
- Voltage, available floor space, loading method, and automation preference.
- Any fixture, coolant, safety, packing, or local service requirement.
Buyer questions
What should buyers confirm before selecting the Gate Valve Sealing Face Machining Machine?
Confirm the workpiece drawing, valve size range, material, required accuracy, production rhythm, voltage, fixture requirement, and whether any automation or loading option is needed.

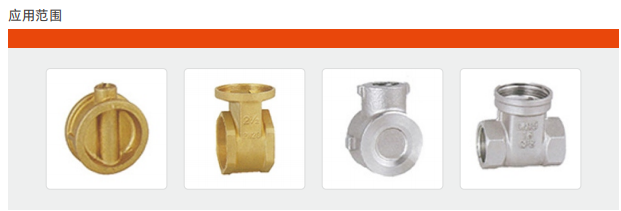

Which valve parts does this gate valve sealing-face machining machine support?
The catalog text lists bronze, brass and stainless steel for gate valve body or gate-plate work in the shown configuration. Final scope should be checked against the buyer’s drawings and target machining sequence before quotation.
Can AMY CNC prepare OEM documentation and nameplate requirements?
Discuss nameplate and documentation requirements with our factory before quotation. Record the agreed configuration, service scope and any required compliance documents in the order.
How should buyers use the specification table?
Use the specification table to compare model size, workpiece range and utilities. Confirm the selected model, fixture, tooling, accuracy and acceptance criteria against your drawing before ordering.
Next step
Send the workpiece drawing, target production rhythm, material, voltage, and preferred loading method. AMY CNC can map the requirement to a suitable machine family and prepare a technical quotation proposal.
