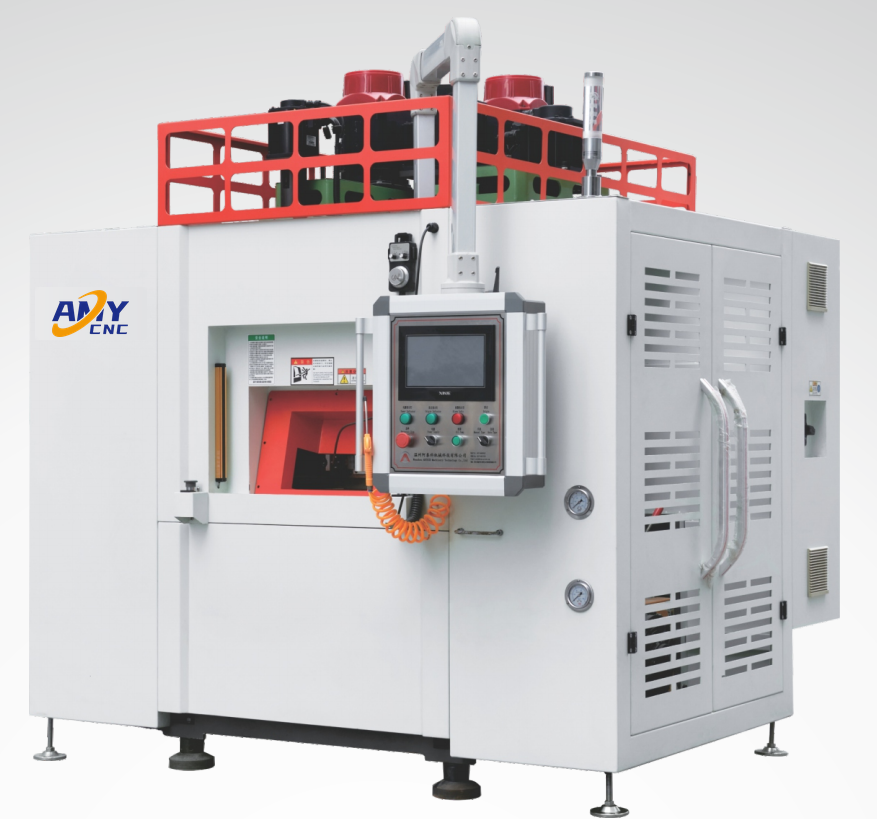

The servo horizontal rotary table valve machine is a catalog-described route for 1/4 inch to 1 inch valve bodies and other tee parts, with upper-side rough machining, finish machining and tapping or threading. Supporting product images separately show brass examples, rotary indexing, servo accessories, clamping components and hydraulic-valve configurations; these visuals do not define the catalog material or part-family limit.
What is this machine used for?
The servo horizontal rotary table valve machine is a catalog-described route for 1/4 inch to 1 inch valve bodies and other tee parts, with upper-side rough machining, finish machining and tapping or threading. Supporting product images separately show brass examples, rotary indexing, servo accessories, clamping components and hydraulic-valve configurations; these visuals do not define the catalog material or part-family limit.
Key machine features
- Catalog text covers 1/4 inch to 1 inch valve bodies and other tee parts.

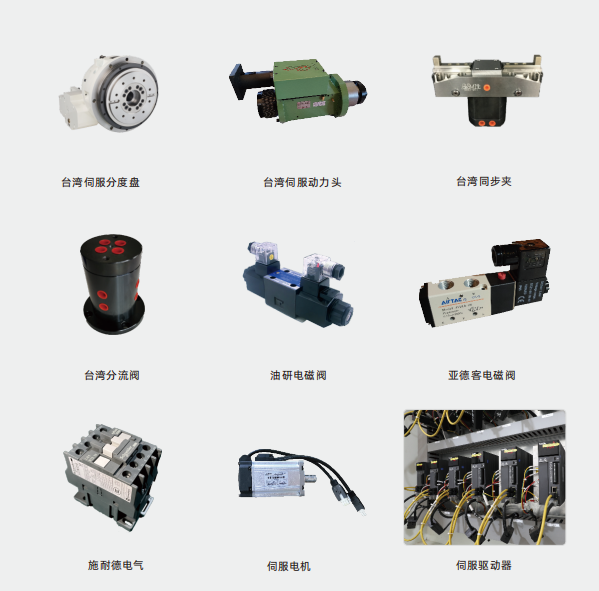

- Source accessory image shows servo indexing table, power head, synchronous clamp, flow divider, hydraulic valve, pneumatic valve, electrical components, servo motor, and servo drive.
- Use accessory details as component context, not as a claim of a fixed standard configuration.
- Best used as a flexible category/model-family page until final model specifications are confirmed.
- RFQ should capture workpiece drawings, required operations, station layout, and desired automation level.
Catalog-derived specifications
The table below presents catalog-derived data as crawlable HTML so buyers can compare the machine family before confirming final model selection, drawings, material, fixtures, voltage, and process requirements.
| Planning item | Buyer reference value |
|---|---|
| Application parts | 1/4 inch to 1 inch valve bodies and other tee parts |
| Machine concept | Horizontal rotary table valve machining |
| Indexing / layout | Servo rotary-table concept shown in source accessory evidence |
| Workholding | Synchronous clamping and fixture layout to be confirmed by workpiece |
| Power head | Upper-side rough machining, finish machining and tapping or threading |
| Hydraulic / pneumatic components | Available as configuration context; final configuration depends on RFQ drawings, fixtures, and required operations |
| Best use | Drawing-based review of valve-body and tee-part machining |
Source and specification boundary
Source basis: Supplier catalog reference reviewed by AMY CNC on 2026-07-14. Catalog values are planning references and must be confirmed against the workpiece drawing and final quotation.

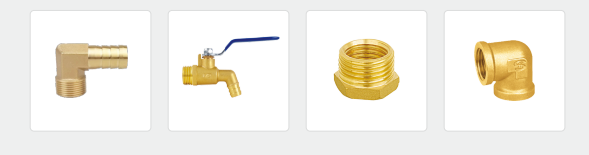

The mapped catalog text covers 1/4 inch to 1 inch valve bodies and other tee parts with upper-side rough machining, finish machining and tapping/threading. Supporting images show brass examples, not a catalog-defined material or part-family limit.
RFQ data buyers should prepare
- Workpiece drawings or photos with target dimensions.
- Valve type, valve size, material, and machining sequence.
- Required tolerance, surface finish, cycle target, and batch quantity.
- Voltage, available floor space, loading method, and automation preference.
- Any fixture, coolant, safety, packing, or local service requirement.
Buyer questions
What should buyers confirm before selecting the Servo Horizontal Rotary Table Valve Machine?
Confirm the workpiece drawing, valve size range, material, required accuracy, production rhythm, voltage, fixture requirement, and whether any automation or loading option is needed.
Which valve parts does this horizontal rotary-table valve machining machine support?
The catalog text supports 1/4 inch to 1 inch valve bodies and other tee parts. Supporting images separately show brass examples; they do not establish the catalog-defined material boundary. Final scope should be checked against the buyer’s drawings and target machining sequence before quotation.
Can AMY CNC support private-label or OEM presentation?
AMY CNC can support approved private-label presentation for machine media and quotation documents. Final nameplate wording, documentation, configuration details, service scope, and any requested compliance evidence should be confirmed before production.
Why are parameters shown as an HTML table instead of an image?
Search engines and AI systems can read HTML tables more reliably than screenshots. Catalog images remain useful as supporting media, but the page should expose key specifications as crawlable text.
Next step
Send the workpiece drawing, target production rhythm, material, voltage, and preferred loading method. AMY CNC can map the requirement to a suitable machine family and prepare a technical quotation proposal.
