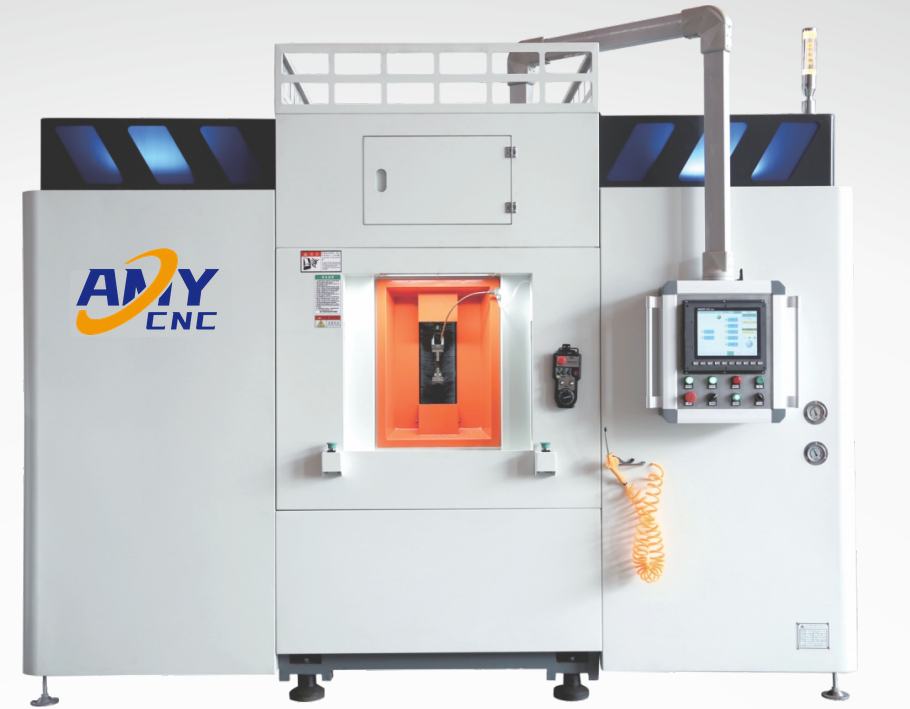

The ATK-TV08-10HSP 6-station servo multi-axis valve transfer machine is the supplier catalog’s 6-station configuration under the same ATK-TV08-10HSP base designation used for the 8-station page. The station count distinguishes the two catalog configurations; final identity, fixture and process layout require drawing and quotation confirmation.
What is this machine used for?
The ATK-TV08-10HSP 6-station servo multi-axis valve transfer machine is the supplier catalog’s 6-station configuration under the same ATK-TV08-10HSP base designation used for the 8-station page. The station count distinguishes the two catalog configurations; final identity, fixture and process layout require drawing and quotation confirmation.
Key machine features
- Catalog source identifies a 6-station servo multi-axis variant.
- Used for 1/4 inch to 1 inch valve bodies and tee-type components in the provided source context.
- Supports hydraulic synchronous clamping and customer-specific power-head distribution.
- Cooling can be matched to the process, including water, mist, air, or other method.
- Presented as a 6-station configuration of a shared catalog designation until final identity and project parameters are confirmed.
Catalog-derived specifications
The table below presents catalog-derived data as crawlable HTML so buyers can compare the machine family before confirming final model selection, drawings, material, fixtures, voltage, and process requirements.
| Catalog item | Buyer reference value |
|---|---|
| Application | 1/4 inch to 1 inch valve body and tee-type parts |
| Station concept | 6-station servo multi-axis transfer machining |
| Power-head distribution | Selectable according to product process layout |
| Clamping type | Hydraulic synchronous clamping |
| Loading method | Manual loading; robot or manipulator option to be confirmed |
| Cooling method | Water, mist, air, or other cooling mode |
Source and specification boundary
Source basis: Supplier catalog reference reviewed by AMY CNC on 2026-07-14. Catalog values are planning references and must be confirmed against the workpiece drawing and final quotation.
The mapped catalog page identifies this as the 6-station configuration under a base designation also used for the 8-station page. Supporting visuals show brass examples, not a catalog-defined material boundary.
Compare the 8-station configuration. Final station identity and process layout must be confirmed against the drawing and quotation.
RFQ data buyers should prepare
- Workpiece drawings or photos with target dimensions.
- Valve type, valve size, material, and machining sequence.
- Required tolerance, surface finish, cycle target, and batch quantity.
- Voltage, available floor space, loading method, and automation preference.
- Any fixture, coolant, safety, packing, or local service requirement.
Buyer questions
What should buyers confirm before selecting the ATK-TV08-10HSP 6-Station Servo Multi-Axis Valve Transfer Machine?
Confirm the workpiece drawing, valve size range, material, required accuracy, production rhythm, voltage, fixture requirement, and whether any automation or loading option is needed.
Which valve parts does this 6-station transfer machining machine support?

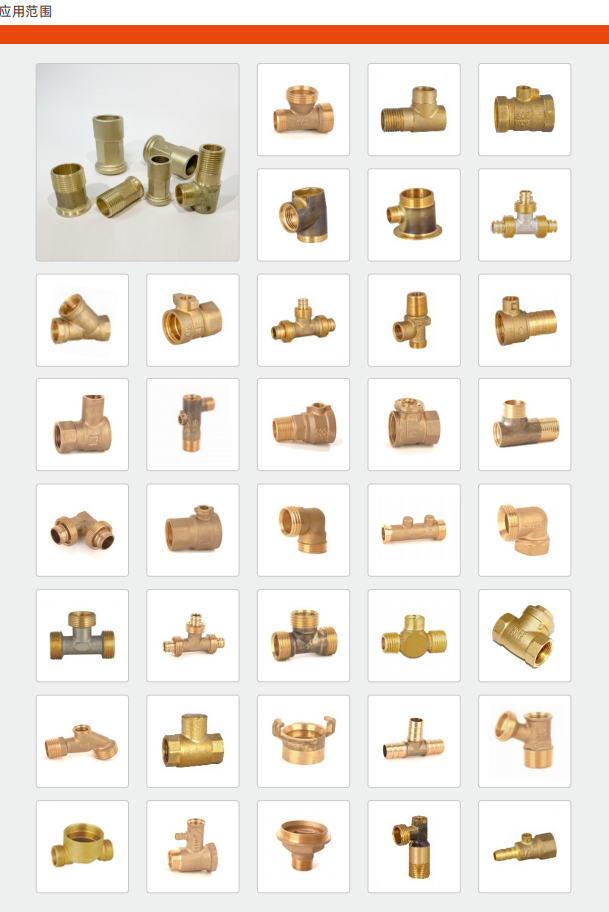

The catalog text supports 1/4 inch to 1 inch valve bodies and tee-type parts. Supporting visuals show brass examples; they do not establish the catalog-defined material boundary. Final scope should be checked against the buyer’s drawings and target machining sequence before quotation.
Can AMY CNC support private-label or OEM presentation?
AMY CNC can support approved private-label presentation for machine media and quotation documents. Final nameplate wording, documentation, configuration details, service scope, and any requested compliance evidence should be confirmed before production.
Why are parameters shown as an HTML table instead of an image?
Search engines and AI systems can read HTML tables more reliably than screenshots. Catalog images remain useful as supporting media, but the page should expose key specifications as crawlable text.
Next step
Send the workpiece drawing, target production rhythm, material, voltage, and preferred loading method. AMY CNC can map the requirement to a suitable machine family and prepare a technical quotation proposal.
