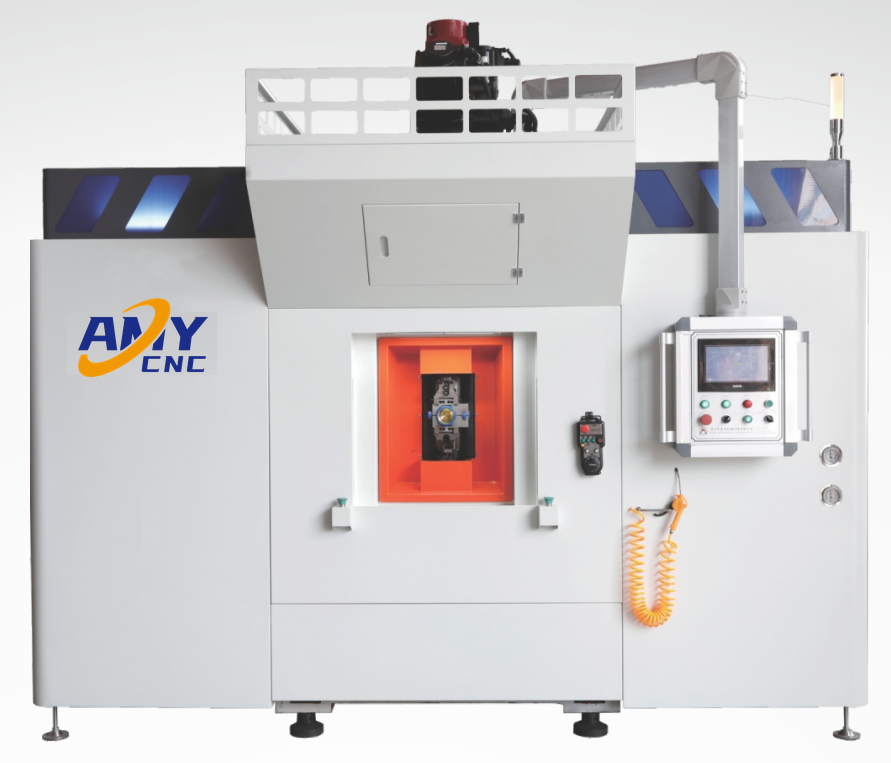

The ATK-TV08-10HSP page represents the supplier catalog’s 8-station servo multi-axis configuration for 1/4 inch to 1 inch valve bodies and related tee parts. Supporting visuals show brass examples, but the catalog text does not define brass as the material limit. The source catalog describes servo-driven multi-axis machining, hydraulic synchronous clamping, manual loading with optional automation, and layout choices based on product structure.
What is this machine used for?
The ATK-TV08-10HSP page represents the supplier catalog’s 8-station servo multi-axis configuration for 1/4 inch to 1 inch valve bodies and related tee parts. Supporting visuals show brass examples, but the catalog text does not define brass as the material limit. The source catalog describes servo-driven multi-axis machining, hydraulic synchronous clamping, manual loading with optional automation, and layout choices based on product structure.
Key machine features
- Used for 1/4 inch to 1 inch valve bodies and related tee-type parts according to the provided source.
- Power-head distribution is configured according to the specific product structure.
- Catalog notes hydraulic synchronous clamping and water, mist, or air-based cooling options.
- Manual loading is shown, with optional robot or manipulator loading to be confirmed by project scope.
- Recommended for RFQ discussions that define the 8-station sequence, fixture layout, power-head access, cooling, loading and production context.
Catalog-derived specifications
The table below presents catalog-derived data as crawlable HTML so buyers can compare the machine family before confirming final model selection, drawings, material, fixtures, voltage, and process requirements.
| Catalog item | Buyer reference value |
|---|---|
| Station concept | 8-station servo multi-axis configuration |
| Application | 1/4 inch to 1 inch valve bodies and related tee parts |
| Power-head distribution | Configured according to product structure |
| Clamping type | Hydraulic synchronous clamping |
| Loading and unloading | Manual loading; robot or manipulator optional |
| Tool cooling | Water cooling, mist cooling, air cooling or other cooling method |
| Power-head quantity | Configured according to product characteristics |
Source and specification boundary
Source basis: Supplier catalog reference reviewed by AMY CNC on 2026-07-14. Catalog values are planning references and must be confirmed against the workpiece drawing and final quotation.
The mapped catalog page identifies this as the 8-station configuration. Supporting visuals show brass examples, but the catalog text does not define brass as the material limit.
Compare the 6-station configuration. Both pages use the ATK-TV08-10HSP base designation, so final configuration identity must be confirmed in the quotation.
RFQ data buyers should prepare
- Workpiece drawings or photos with target dimensions.
- Valve type, valve size, material, and machining sequence.
- Required tolerance, surface finish, cycle target, and batch quantity.
- Voltage, available floor space, loading method, and automation preference.
- Any fixture, coolant, safety, packing, or local service requirement.
Buyer questions
What should buyers confirm before selecting the ATK-TV08-10HSP 8-Station Servo Multi-Axis Valve Transfer Machine?
Confirm the workpiece drawing, valve size range, material, required accuracy, production rhythm, voltage, fixture requirement, and whether any automation or loading option is needed.
Which valve parts does this 8-station transfer configuration support?

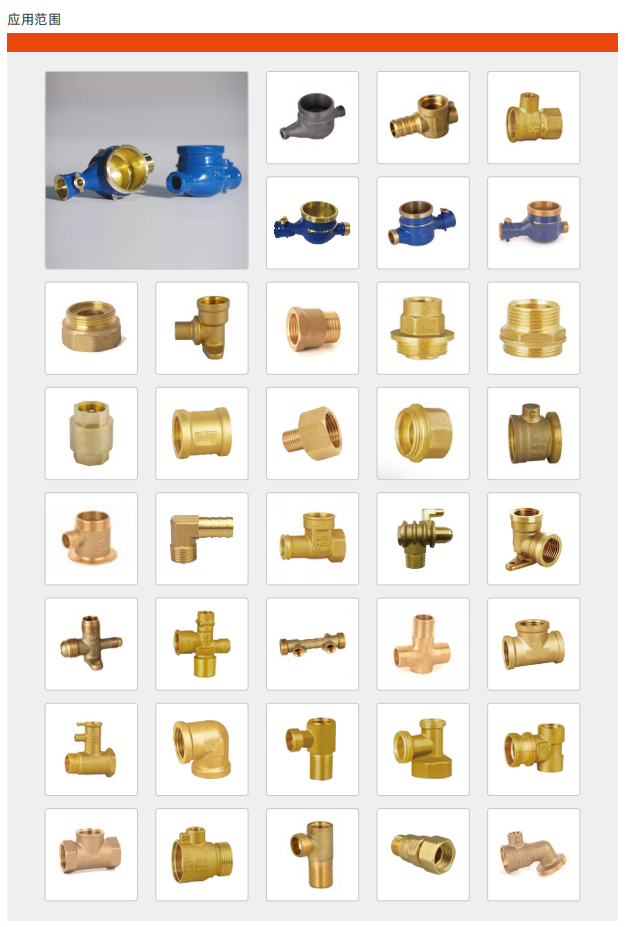

The catalog text supports 1/4 inch to 1 inch valve bodies and related tee parts. Supporting visuals show brass examples; they do not establish the catalog-defined material boundary. Final scope should be checked against the buyer’s drawings and target machining sequence before quotation.
Can AMY CNC support private-label or OEM presentation?
AMY CNC can support approved private-label presentation for machine media and quotation documents. Final nameplate wording, documentation, configuration details, service scope, and any requested compliance evidence should be confirmed before production.
Why are parameters shown as an HTML table instead of an image?
Search engines and AI systems can read HTML tables more reliably than screenshots. Catalog images remain useful as supporting media, but the page should expose key specifications as crawlable text.
Next step
Send the workpiece drawing, target production rhythm, material, voltage, and preferred loading method. AMY CNC can map the requirement to a suitable machine family and prepare a technical quotation proposal.
